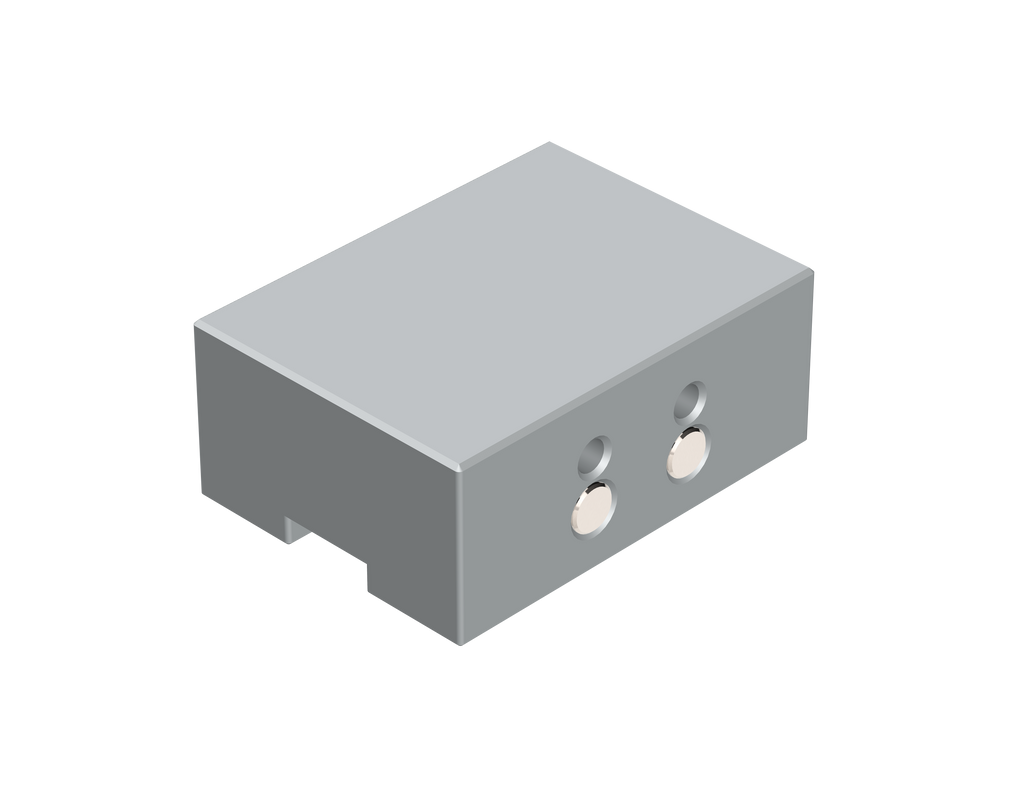

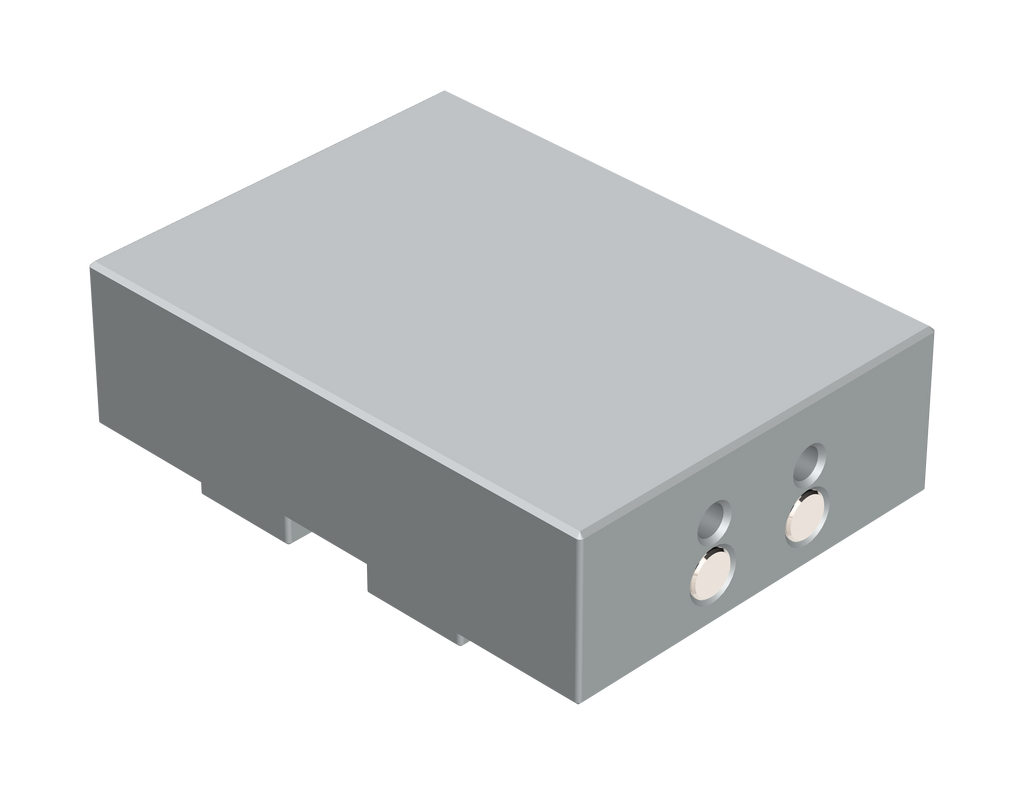

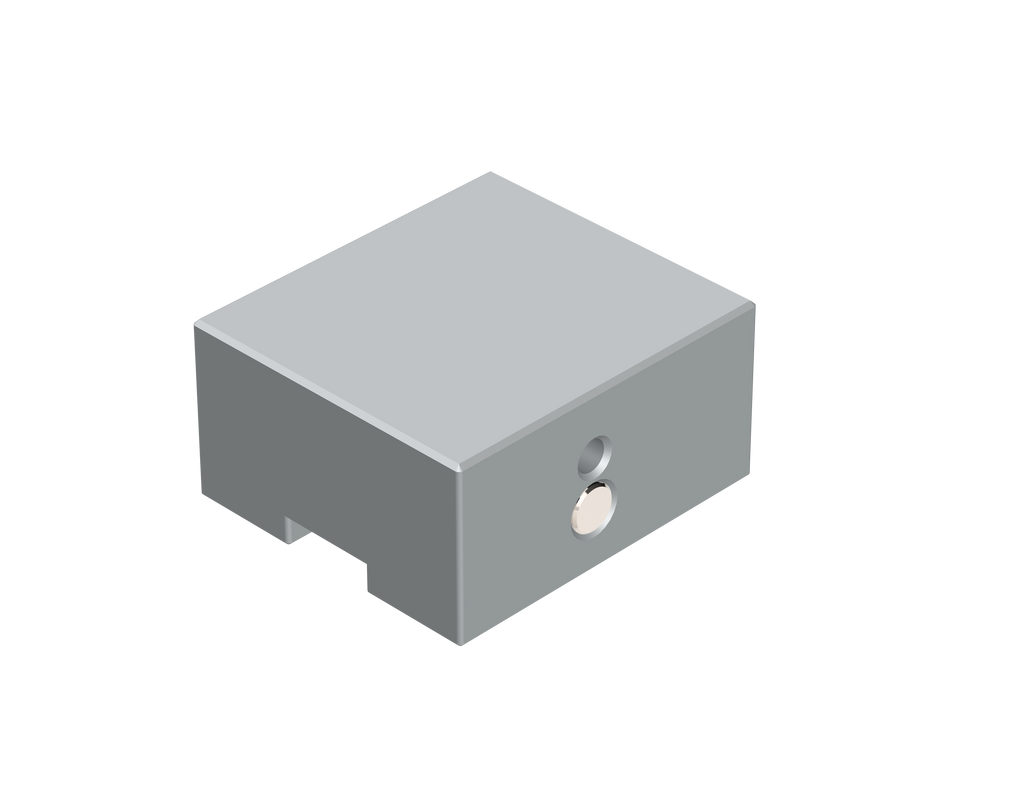

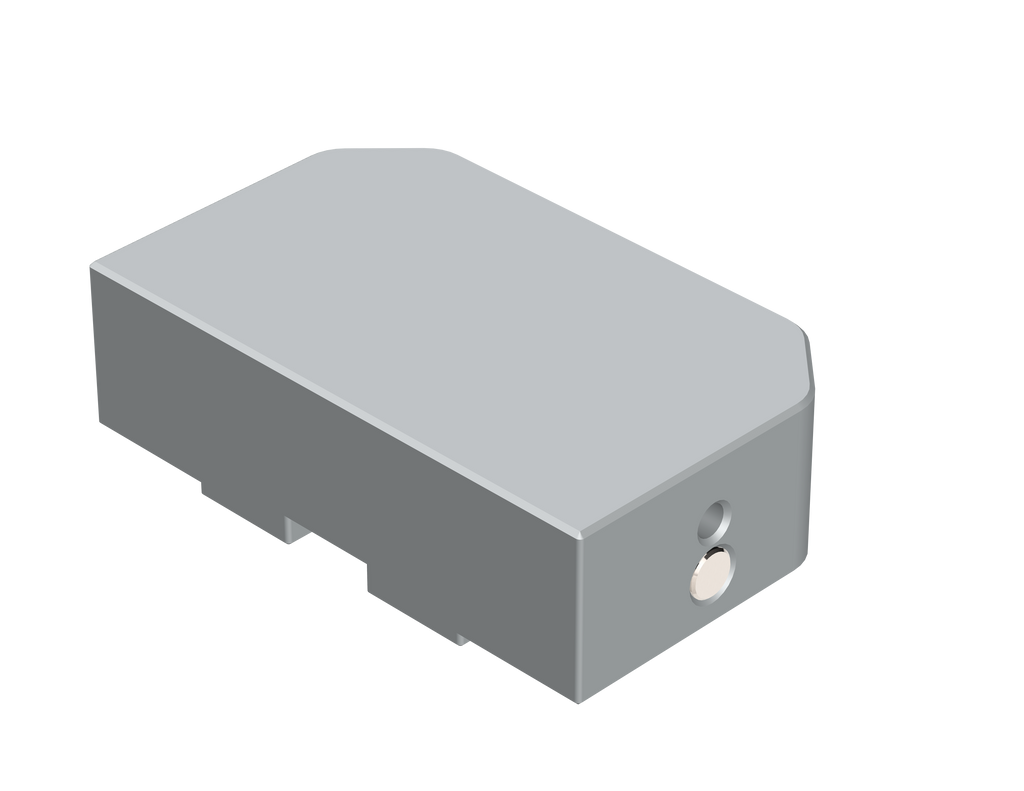

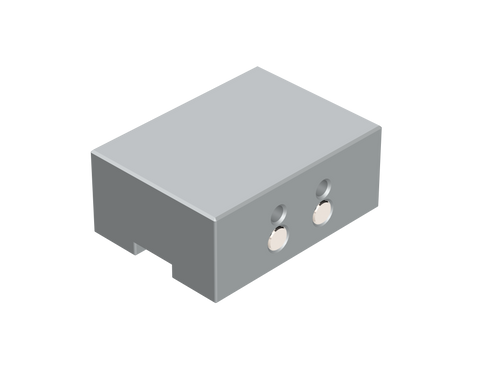

Quick change machinable soft jaw for our Pneumatic Vise.
3 second jaw changeover, no tools required.
Required hook block is provided with every SMT vise, meaning no extra adapters necessary.

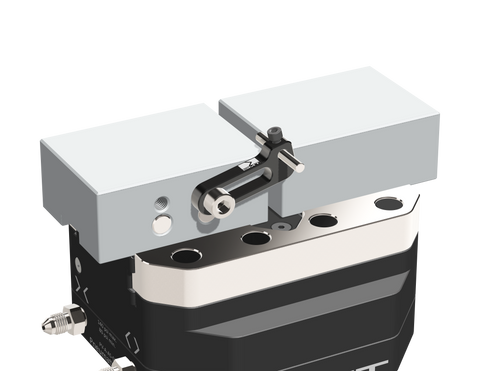

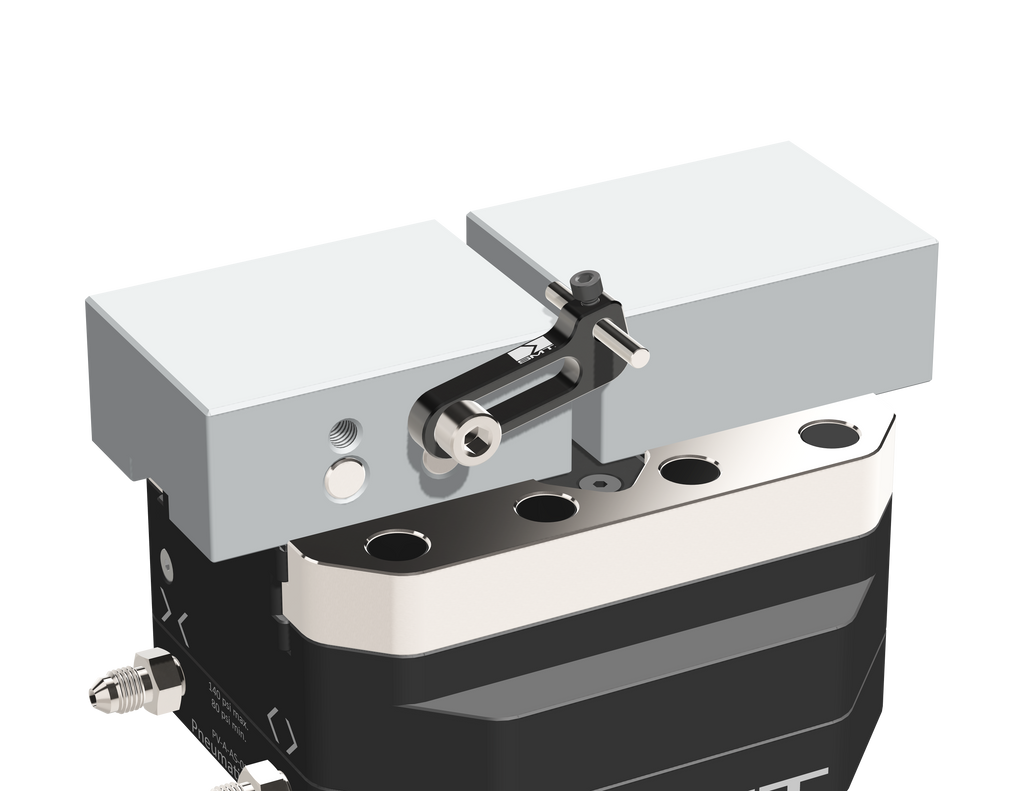

Suits SMT End Stop long variant.
Sold individually. Please note we only keep the most popular variants in stock. Lead time for out of stock or custom soft jaws is two weeks maximum from day of order being placed.
Dimensions:
- Height, 33mm from top of rail
- Wide, 125mm
- Narrow, 96mm

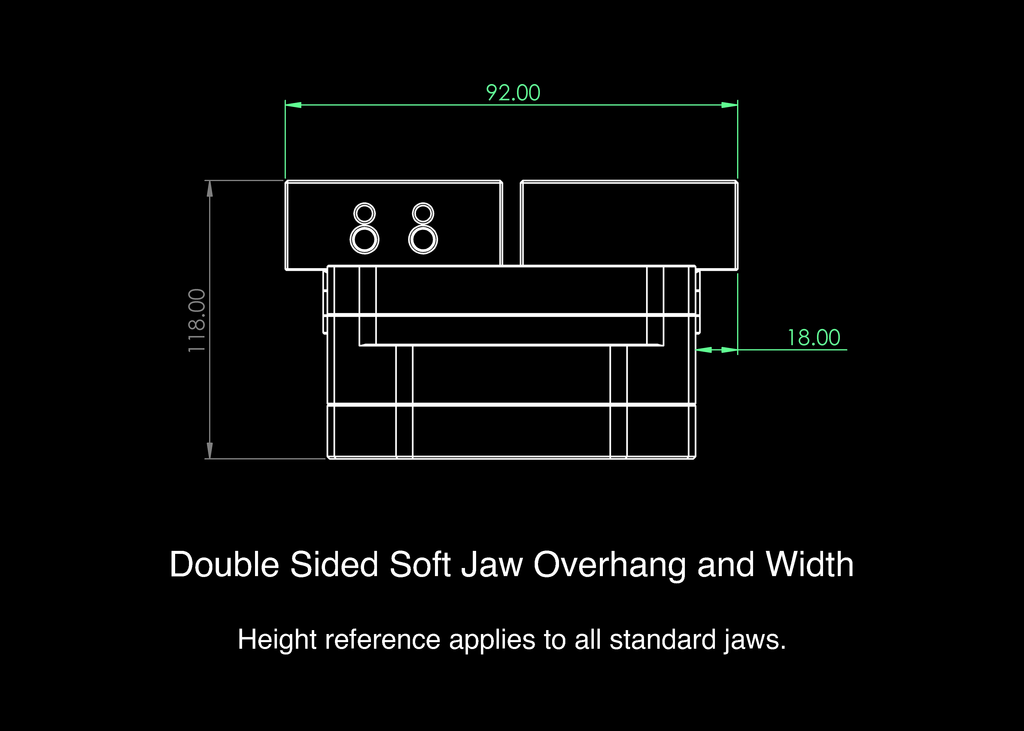

- Double sided overhangs front and rear of vise by 18mm maximum

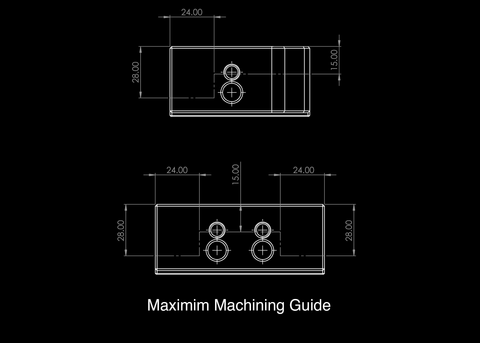

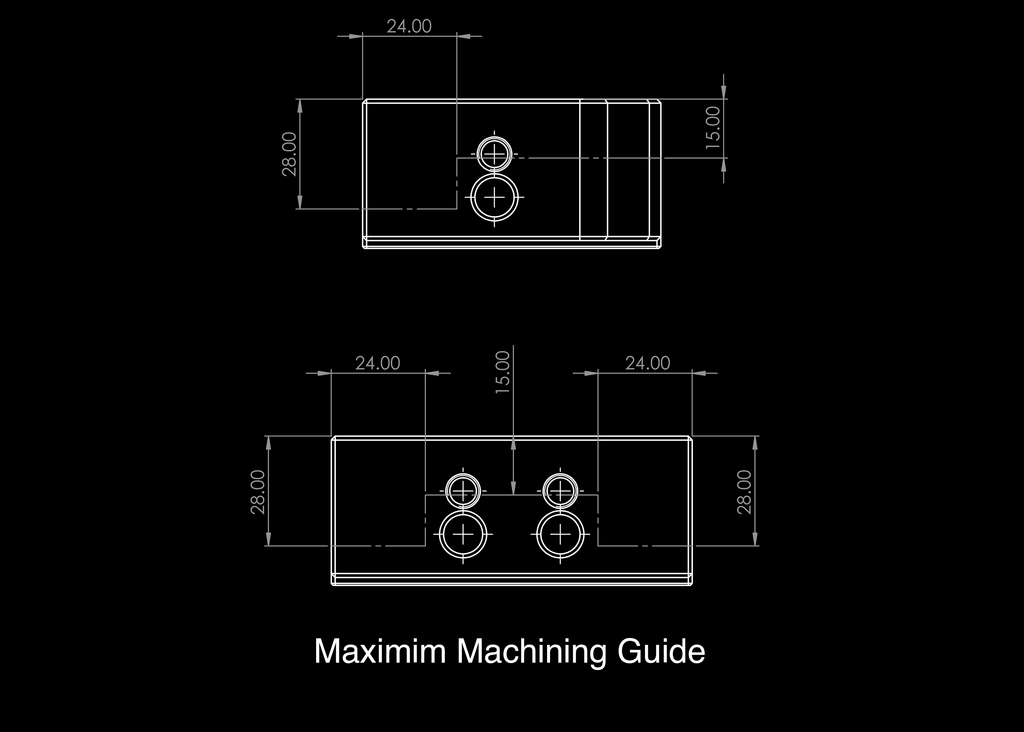

- Maximum machinable area dimensions in images. End stop threaded hole can be cut through if required.
Custom options available on request:
- Height
- Material (bronze, polymers, various steels including tool steels, various aluminum grades and more).
- Position or removal of end stop threaded holes.
- Profile options (e,g, chamfered sides and rear for 5 axis).

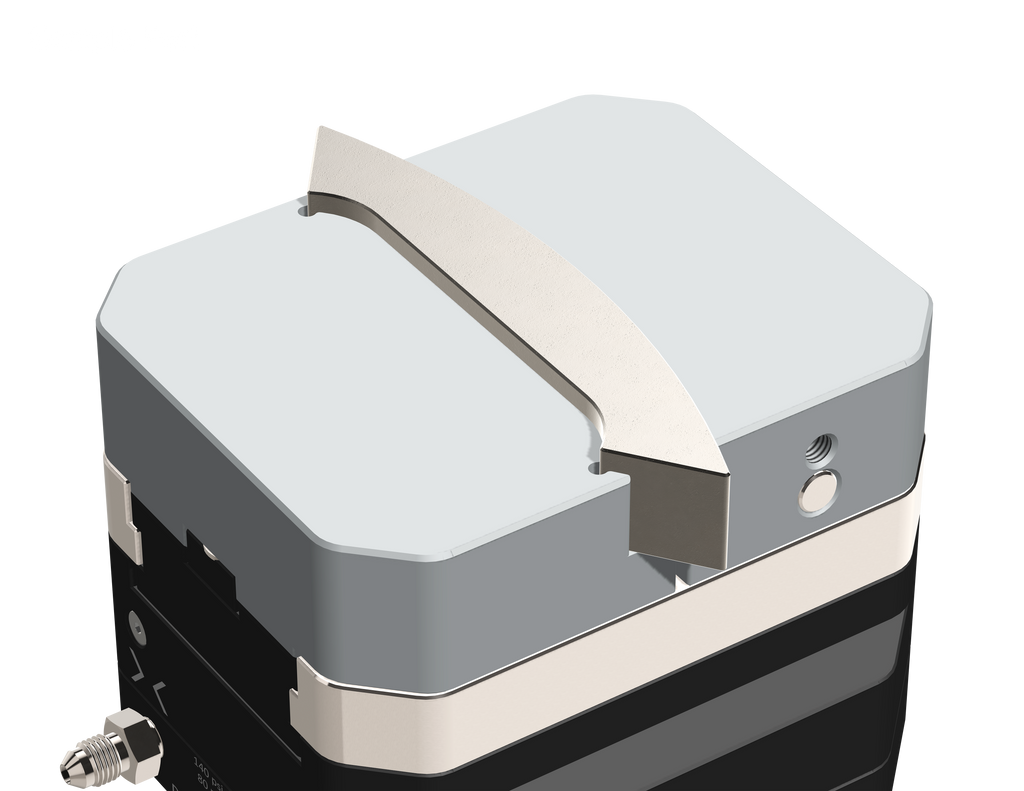

- Pre-machined part profiles.
- Finishes (case hardemed steel, thru-hardened steel, anodised etc.).
