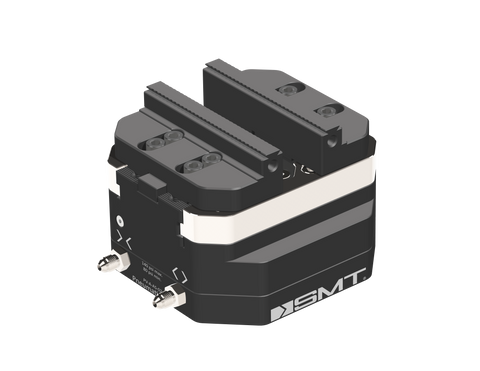

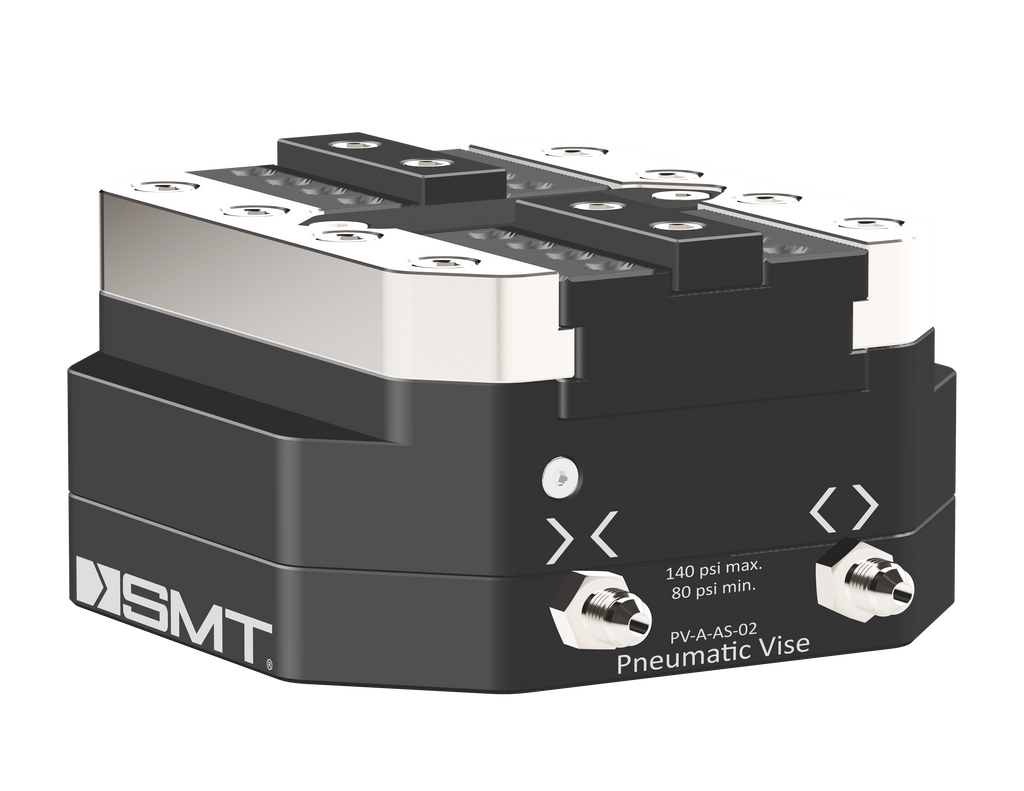

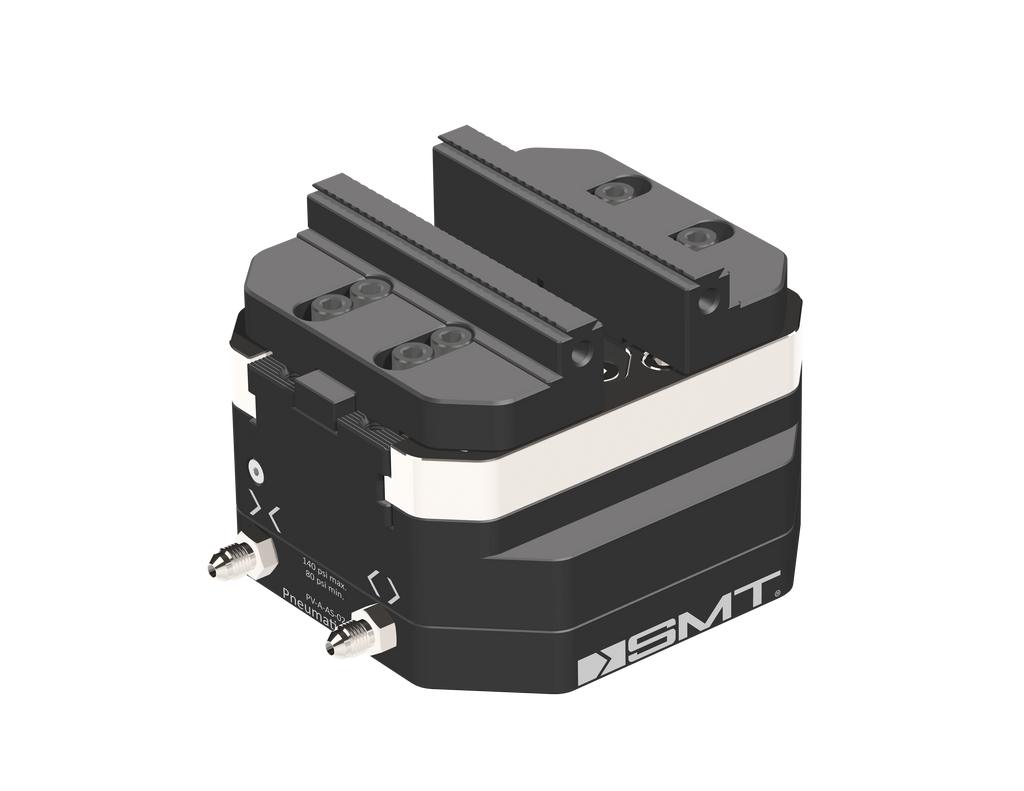

Speed up your workpiece changeover with our self-centering pneumatic vise.

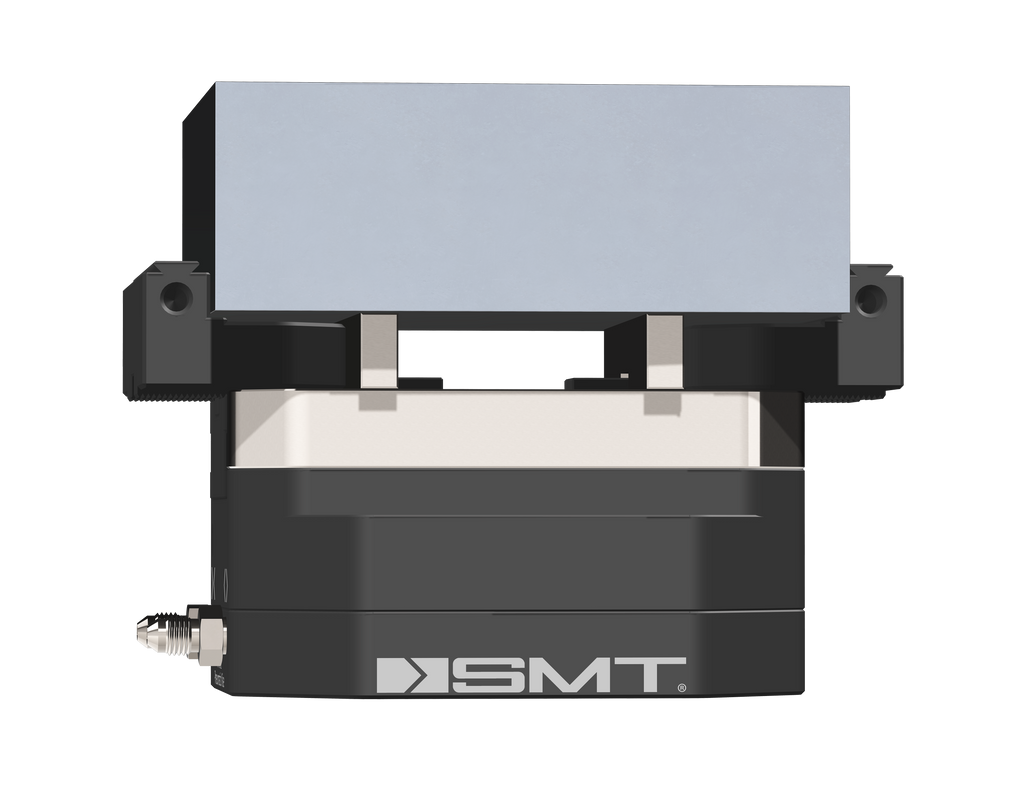

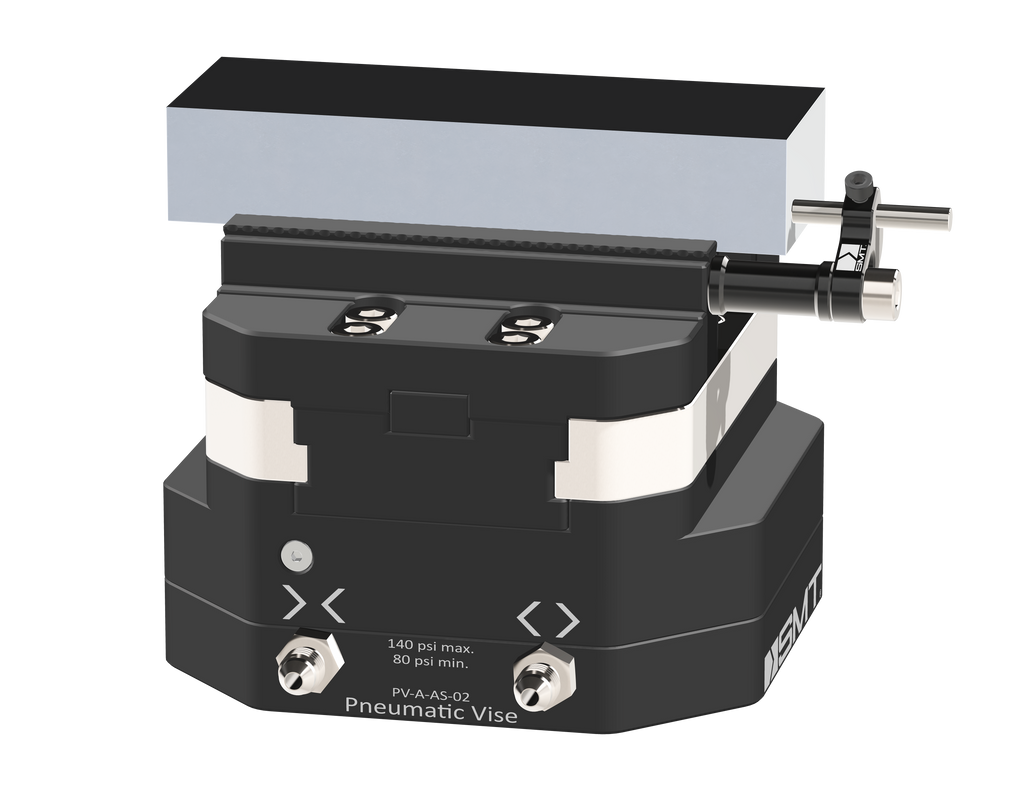

Standard jaw external clamping; 8-174mm range toothed holding, 0-170mm range flat holding.
Round jaws, up to Ø150mm raw stock clamping. Flat holding as above.
Quick change soft jaws boast a 3 second tool free jaw changeover time, with many options available, and custom options available on request.
All options come with both hard jaw centering block, and hook block for quick change soft jaws, meaning you can purchase any compatible jaw style with no extras needed.
10 kN clamping force (max pressure) both directions, for external and internal clamping.
Ground ways for ±0.005mm flatness over the entire vise body length, allowing for the indexing of work directly to the top of the vise body. Height variation of top face between vises guaranteed ±0.02mm.
1/8 BSP to AN4 fittings supplied, for usage with braided pneumatic line (SMT recommended). Can be swapped out to 1/8 BSP one touch fittings if braided lines are not required.
Takes SMT Ø20mm studs (sold separately) in 96mm pattern. Will fit other brands Ø16mm boss, Ø20mm studs, or can be held down with traditional clamping methods (not supplied) on the flanges.
