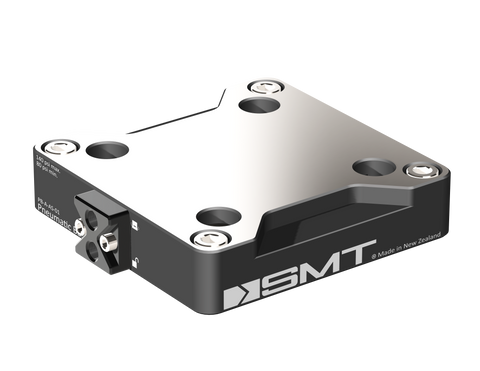

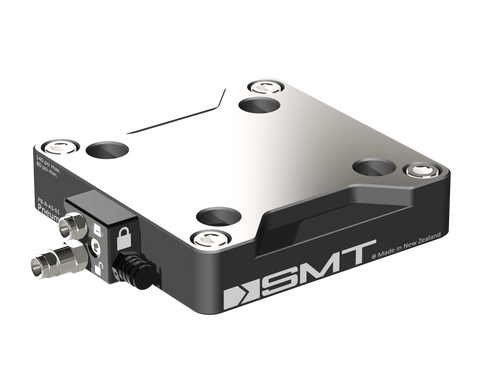

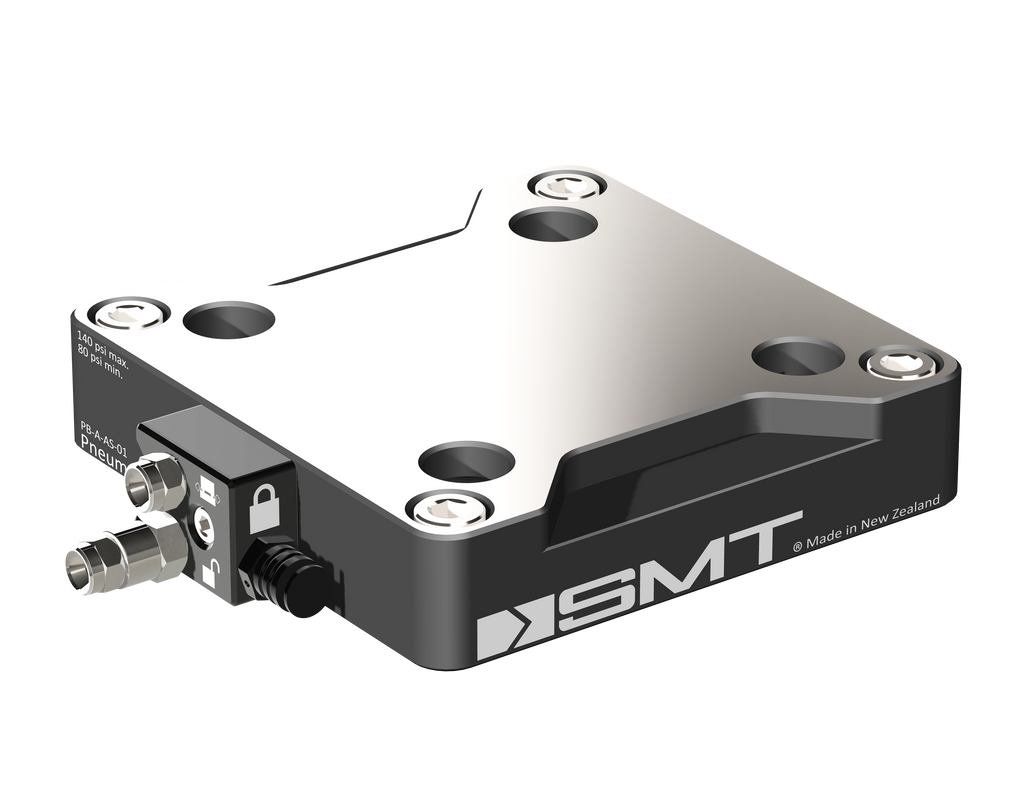

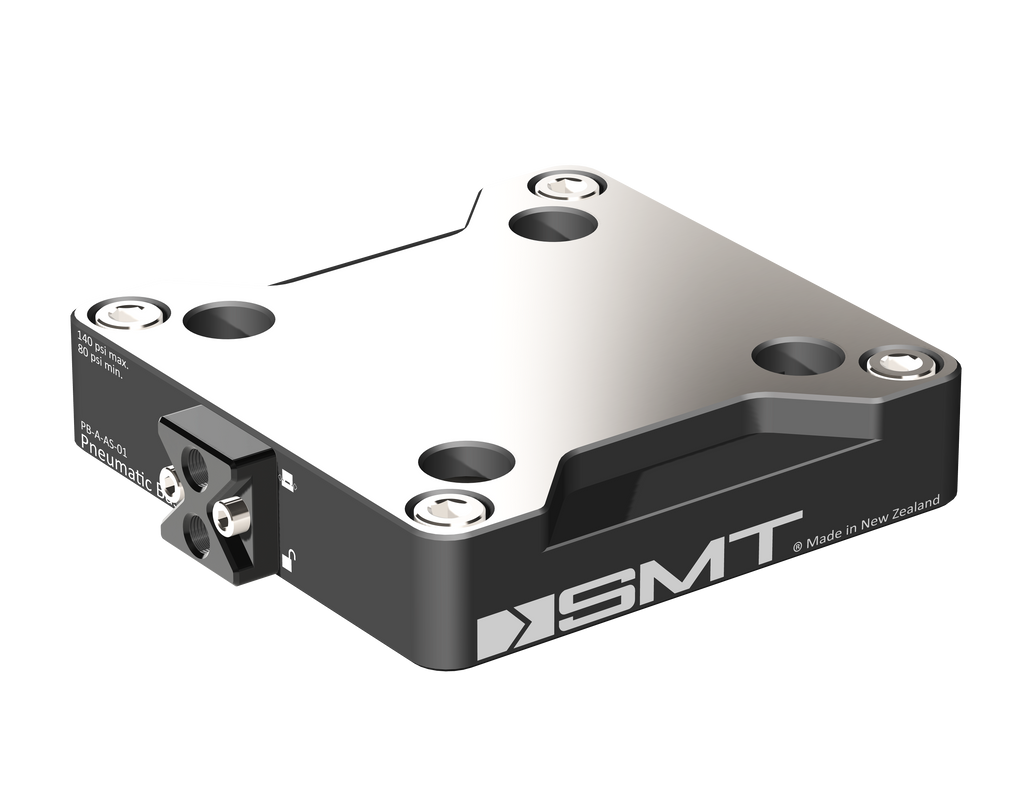

Put the torque wrench down! Rapidly increase the speed and ease of changing work holding fixtures with our innovative base.
Air unlock, mechanical lock. Needs no fixed pneumatic lines, and guarantees your work will never come loose in the event of a pressure drop.
Air gun operation. Our SMT Air Interface© fixtures mean you choose the best fittings for your operation style, including simply using your air gun.
Air blast ejection and cleaning. So you don't have to wrestle your vise out each time.
Takes our Ø20mm studs, also compatible with Lang, HWR and more.
Made in our factory here in New Zealand, we guarantee repeatable fixture accuracy to 10µm
Specs:
- 96mm stud pattern.
- 184.15 (7 1/4") PCD M10 mounting.
- 156x156mm footprint, 34±0.01mm height.
- 10mm deep steps for classic clamping blocks.
- Made of high toughness hardened wear resistant steel.
Included:
- 1x SMT Air Interface of your choosing. Other options can be purchased separately and swapped at any time.
- 4x M10 x 35mm 304SS SHCS for attaching base to sub-plate.
Available Accessories:
- SMT Air Interface (various versions).

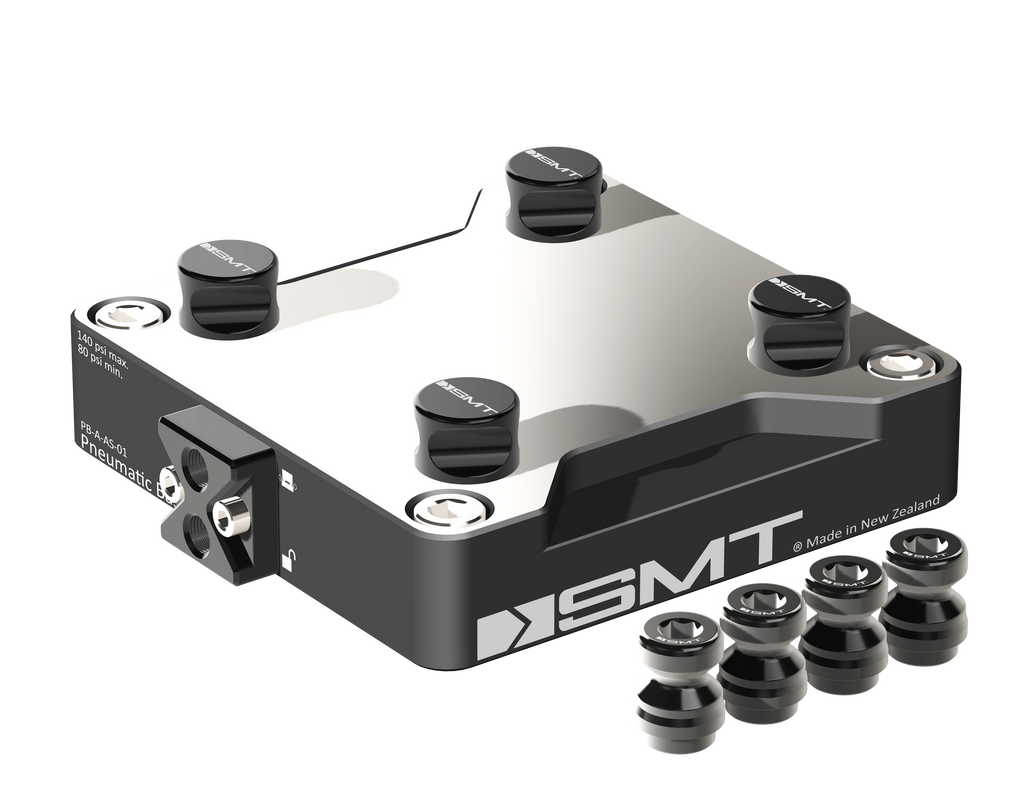

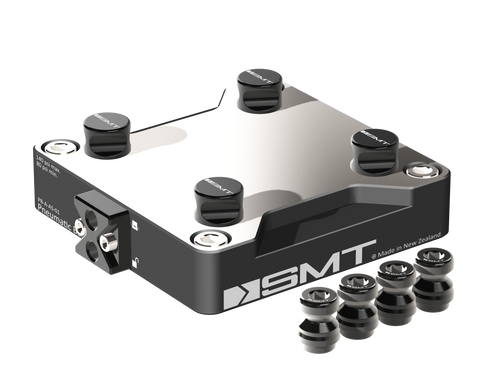

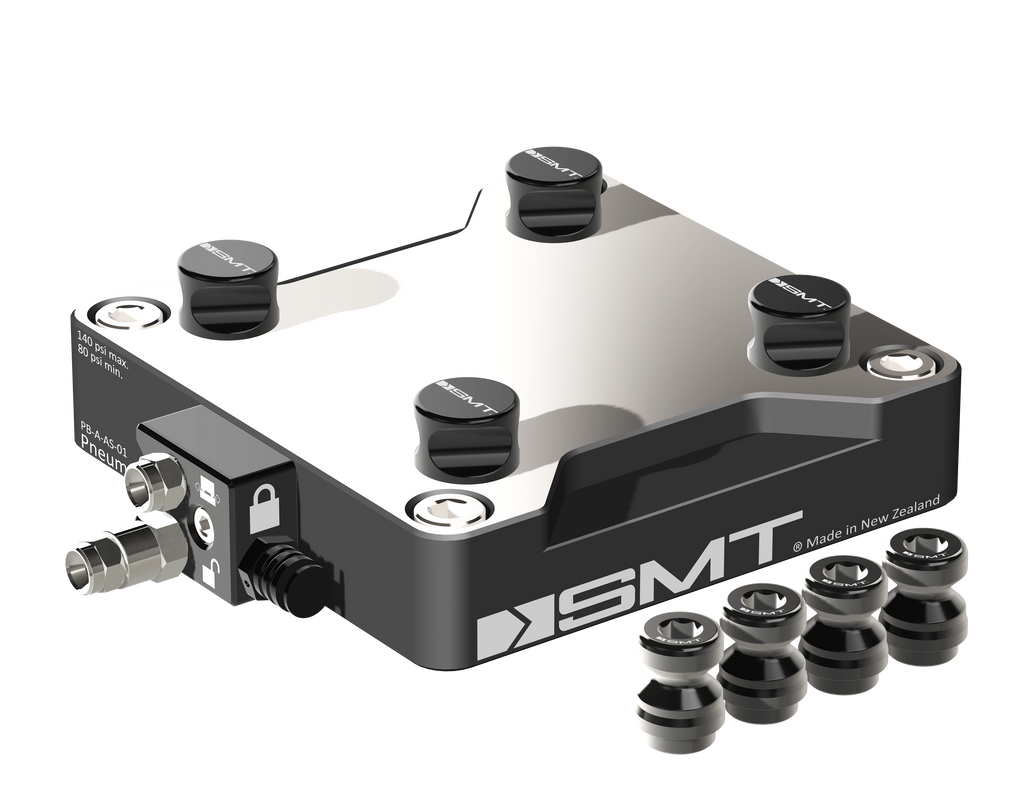

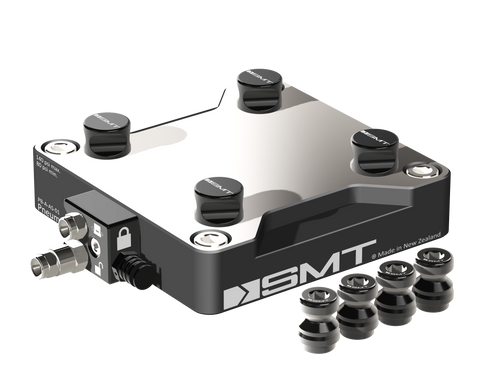

- SMT Stud Plugs (locking and non-locking).
At SMT, we believe in the right to repair. We sell service kits and all components for our products separately on inquiry.
